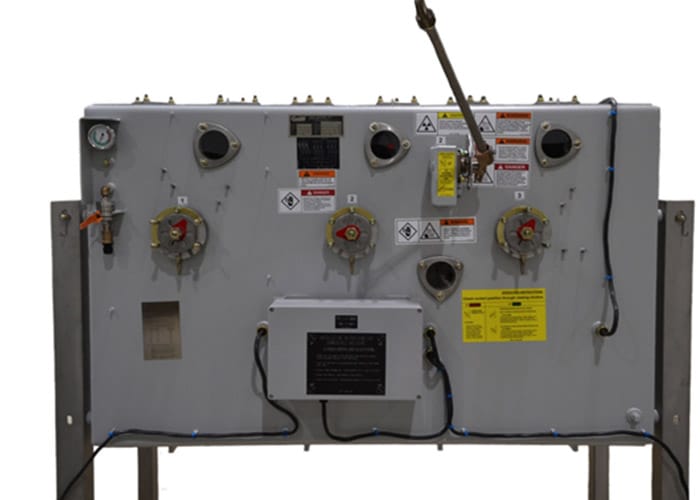

A grey switch on a white background

GNI负载断开与故障中断开关设备

G&W Electric型号GNI垫板开关具备负载断开和故障中断功能，双向均可见断路和集成接地位置。这样就不需要处理任何高压连接来接地电缆。高压连接处位于开关操作员的另一侧，以进一步隔离操作员免受高压影响。故障断路器在完全密封、死前端的设备中提供电子控制、可复位的超流保护。这些开关设计用于电压最高38kV、900A负载断路和连续电流的三相系统，具有12.5kA、20kA和25kA对称故障中断额定值。GNI是较为多功能的配置之一，因为它可以订购前置可访问的开关操作员和套管，也可以选择前置操作员和后置套管。

GNI垫装开关设计符合IEEE C37.72、C37.74和C37.60标准，具备负载断开和故障中断能力，是我们先进 开关 设备解决方案的关键组成部分，确保安全可靠的电力分配。垫装外壳设计并测试符合IEEE C57.12.28和C57.12.29标准。

配置器SF6加载中断 通过电子邮件发送您的规格

特色与优势

  • 建设 – 可提供前置开关操作器和衬套，或前置操作器和后置衬套。拱顶结构还可提供顶部或底部衬套，或顶部触及操作器和衬套。

  • 故障中断 三相故障中断，电流最高达25kA，可选择工业曲线，包括熔断器仿真曲线。

  • 电压感应 – 所有方式均配备集成电压感应功能，可配合电压指示面板测定同相状态，或与继电器配合使用，精度最高可达1%。

  • 可见断裂 – 所有航行都配备可见断裂，可查看开启、关闭和地面位置。

  • 地面位置 – 所有方向均集成接地位置，避免使用高压元件来接地电缆。

  • 自动化 – 适用于电动机自动化，配备便携式或永久安装的电机和控制装置。G&W Electric的编程和箱体制造提供了多种继电器，如SEL、ABB和GE。柜体可订购为低压外壳，用于安装垫、底座或IP68级潜水器，用于穹顶安装开关设备。提供自动源传输、保护或激光器定制解决方案的编程。

Configurations Chart for GNI Switch Front Access

# of WaysOne-line Diagram (Horizontal)Voltage Class (kV)Catalog NumberApproximate Width* in. (mm)
5
15GNI21-376-25-5F59.5 (1511.3)
25GNI21-386-25-5F
35GNI21-396-25-5F
6
15GNI32-376-25-6F74.5 (1892.3)
25GNI32-386-25-6F
35GNI32-396-25-6F
7
15GNI31-376-25-7F83 (2108.2)
25GNI31-386-25-7F
35GNI31-396-25-7F
9
15GNI42-376-25-9F98 (2489.2)
25GNI42-386-25-9F
35GNI42-396-25-9F
11
15GNI43-376-25-11F89.5 (2273.3)
25GNI43-386-25-11F
35GNI43-396-25-11F
12
15GNI41-376-25-12F104.5 (2654.3)
25GNI41-386-25-12F
35GNI41-396-25-12F
51
15GNI51-376-25-51F130 (3302)
25GNI51-386-25-51F
35GNI51-396-25-51F
52
15GNI52-376-25-52F121.5 (3086.1)
25GNI52-386-25-52F
35GNI52-396-25-52F
53
15GNI53-376-25-53F113 (2870.2)
25GNI53-386-25-53F
35GNI53-396-25-53F
54
15GNI54-376-25-54F104.5 (2654.3)
25GNI54-386-25-54F
35GNI54-396-25-54F
61
15GNI61-379-25-61F153.5 (3898.9)
25GNI61-389-25-61F
35GNI61-399-25-61F
62
15GNI62-376-25-62F145 (3683)
25GNI62-386-25-62F
35GNI62-396-25-62F
63
15GNI63-376-25-63F136.5 (3467.1)
25GNI63-386-25-63L
35GNI63-396-25-63F
64
15GNI64-376-25-64F128 (3251.2)
25GNI64-386-25-64F
35GNI64-396-25-64F
65
15GNI65-376-25-65F119.5 (3035.3)
25GNI65-386-25-65F
35GNI65-396-25-65F

Configurations Chart for GNI Switches Front/Rear Access

# of WaysOne-line Diagram (Horizontal)Voltage Class (kV)Catalog NumberApproximate
Width* in. (mm)
5
15GNI21-376-25-5L59.5
(1511.3)
25GNI21-386-25-5L
35GNI21-396-25-5L
6
15GNI32-376-25-6L74.5
(1892.3)
25GNI32-386-25-6L
35GNI32-396-25-6L
7
15GNI31-376-25-7L83
(2108.2)
25GNI31-386-25-7L
35GNI31-396-25-7L
9
15GNI42-376-25-9L98
(2489.2)
25GNI42-386-25-9L
35GNI42-396-25-9L
11
15GNI43-376-25-11L89.5
(2273.3)
25GNI43-386-25-11L
35GNI43-396-25-11L
12
15GNI41-376-25-12L104.5
(2654.3)
25GNI41-386-25-12L
35GNI41-396-25-12L
51
15GNI51-376-25-51L130
(3302)
25GNI51-386-25-51L
35GNI51-396-25-51L
52
15GNI52-376-25-52L121.5
(3086.1)
25GNI52-386-25-52L
35GNI52-396-25-52L
53
15GNI53-376-25-53L113
(2870.2)
25GNI53-386-25-53L
35GNI53-396-25-53L
54
15GNI54-376-25-54L104.5
(2654.3)
25GNI54-386-25-54L
35GNI54-396-25-54L

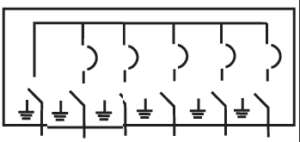

61
15GNI61-379-25-61L153.5
(3898.9
25GNI61-389-25-61L
35GNI61-399-25-61L
62
15GNI62-376-25-62L145
(3683)
25GNI62-386-25-62L
35GNI62-396-25-62L
63
15GNI63-376-25-63L136.5
(3467.1)
25GNI63-386-25-63L
35GNI63-396-25-63L
64
15GNI64-376-25-64L128
(3251.2)
25GNI64-386-25-64L
35GNI64-396-25-64L
65
15GNI65-376-25-65L119.5
(3035.3)
25GNI65-386-25-65L
35GNI65-396-25-65L
Approximate Height = 53″ (1346mm), Approximate Depth = 73″ (1854mm)

Configurations Chart for VGNI Switches Vault Front Access

# of WaysOne-line Diagram (Horizontal)Voltage Class (kV)Catalog NumberApproximate
Width* in. (mm)
5
15VGNI21-376-25-5F59.5
(1511.3)
25VGNI21-386-25-5F
35VGNI21-396-25-5F
6
15VGNI32-376-25-6F74.5
(1892.3)
25VGNI32-386-25-6F
35VGNI32-396-25-6F
7
15VGNI31-376-25-7F83
(2108.2)
25VGNI31-386-25-7F
35VGNI31-396-25-7F
9
15VGNI42-376-25-9F98
(2489.2)
25VGNI42-386-25-9F
35VGNI42-396-25-9F
11
15VGNI43-376-25-11F89.5
(2273.3)
25VGNI43-386-25-11F
35VGNI43-396-25-11F
12
15VGNI41-376-25-12F104.5
(2654.3)
25VGNI41-386-25-12F
35VGNI41-396-25-12F
51
15VGNI51-376-25-51F130
(3302)
25VGNI51-386-25-51F
35VGNI51-396-25-51F
52
15VGNI52-376-25-52F121.5
(3086.1)
25VGNI52-386-25-52F
35VGNI52-396-25-52F
53
15VGNI53-376-25-53F113
(2870.2)
25VGNI53-386-25-53F
35VGNI53-396-25-53F
54
15VGNI54-376-25-54F104.5
(2654.3)
25VGNI54-386-25-54F
35VGNI54-396-25-54F
6115VGNI61-379-25-61F153.5
(3898.9)
25VGNI61-389-25-61F
35VGNI61-399-25-61F
62
15VGNI62-376-25-62F145
(3683)
25VGNI62-386-25-62F
35VGNI62-396-25-62F
6315VGNI63-376-25-63F136.5
(3467.1)
25VGNI63-386-25-63L
35VGNI63-396-25-63F
64
15VGNI64-376-25-64F128
(3251.2)
25VGNI64-386-25-64F
35VGNI64-396-25-64F
65
15VGNI65-376-25-65F119.5
(3035.3)
25VGNI65-386-25-65F
35VGNI65-396-25-65F

Ratings Chart for GNI Switches

Voltage Class, (kV)15kV25kV35 kV
Maximum design voltage (kV)15.5kV27kV38kV
BIL Impulse (kV)110kV125kV150kV
1 Min Withstand AC (kV)35kV60kV70kV
1 Min Withstand Production test rating AC (kV)34kV40kV50kV
15 Min Withstand DC (kV)53kV78kV103kV
Continuous and load break current (A)*630 amps630 amps630 amps
Momentary Current (kA) asym40kA asym40kA asym40kA asym
Fault-Close 3-times (kA) asym40kA asym40kA asym40kA asym
1 Sec Current (kA) sym25kA asym25kA asym25kA asym
Mechanical Operations200020002000
Symmetrical interrupting ratings (kA)**252525
*900A continuous available
**12.5kA and 20kA available

有关配件及其他选项，请参见完整目录。
