Capnut group

帽式终端

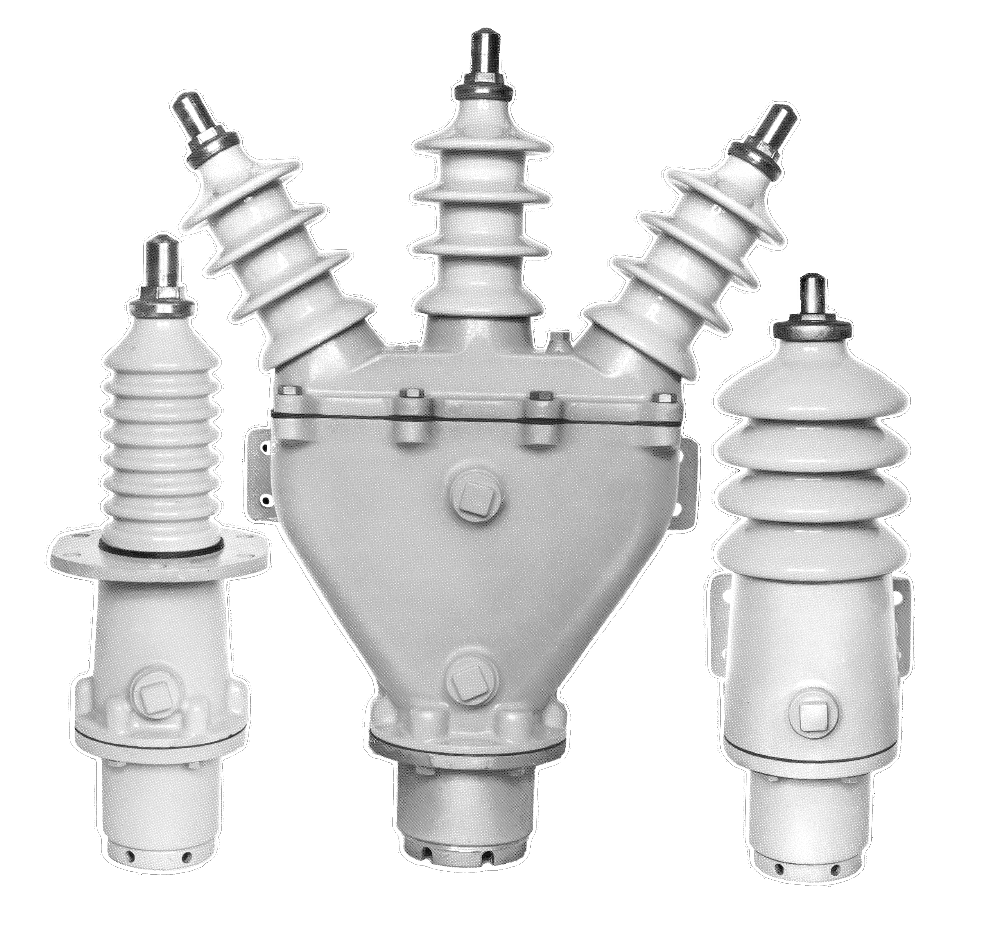

帽螺母终端设计用于连接发电机、开关设备、变压器、架空线路或分段设备。所有终端均按照IEEE 48,1975年标准进行测试。

用于终端连接发电机、开关设备、变压器、架空线路或分段设备的绝缘电缆。

通过电子邮件发送您的规格

特色与优势

  • 额定额定为15kV、25kV、34.5kV和46kV的单导体单元

  • 用于杆子或设备安装的支架和法兰安装型号

  • 模块化设计允许根据应用和电缆设计进行定制

  • 三根导体单元额定为15kV、25kV和34.5kV

  • 支持任何实心介质、纸绝缘或装甲电缆的结构

  • 磁带应力锥允许在处理信息有限的老有线系统时进行现场适应

Ratings Chart for Capnut Terminations

Voltage152534.546
BIL (kV)110150200250
Current RatingSame as cableSame as cableSame as cableSame as cable
1 minute dry, ac (kV)506590120
6 hour dry, ac (kV)355575100
10 second wet, ac (kV)456080100
15 minute dry, dc (kV)75105140170

Accessories Chart for Capnut Accessories

Cable TypeWSWSV-CCWSV-ACWSV-WAFRSRSF-CCRSF-ACRSF-WAFRSADPDP-CCDP-EE-ACDP-EE-WAF
PILC
VCLC
RILC		1 or 3 Conductor3 Conductor1 or 3 Conductor3 Conductor3 Single Conductors3 Single Conductors
EPR
XLP		1 or 3 Conductor3 Conductor3 Single Conductors3 Single Conductors
High mole Polyethylene and Kerits1 or 3 Conductor MAY REQUIRE TUBE SEAL3 Conductor MAY REQUIRE TUBE SEAL3 Single Conductors MAY REQUIRE TUBE SEAL3 Single Conductors MAY REQUIRE TUBE SEAL
Flat Steel Armored3 Conductor3 Conductor1 or 3 Conductor
Interlocked* Armor3 Conductor
Wire Armor3 Conductor3 Conductor1 or 3 Conductor
Type CCE Split Conduit Extension Adaptable√√√√√√√√√
*Application on cable with a solid jacket under the armor. For cables with a jacket over the armor, a cable entrance fitting combination (DP3-EE-EE-GL-ACC-DP-1) can be used.
Aerial Lugs Accessories include: Style 3-D Clamp style, Style 8 Bertial 4 hole and Style 18 Horizontal Bus style
Novoid Accessories include: Novoid A and Novid X for use with PILC Cable, Novoid A and Novoid 224 for use with XLPE/EPR.
Novoid 224 not applicable with PILC Cable. Novoid X not applicable with XLPE/EPR.
