RPFI – 负载断路开关和故障断路

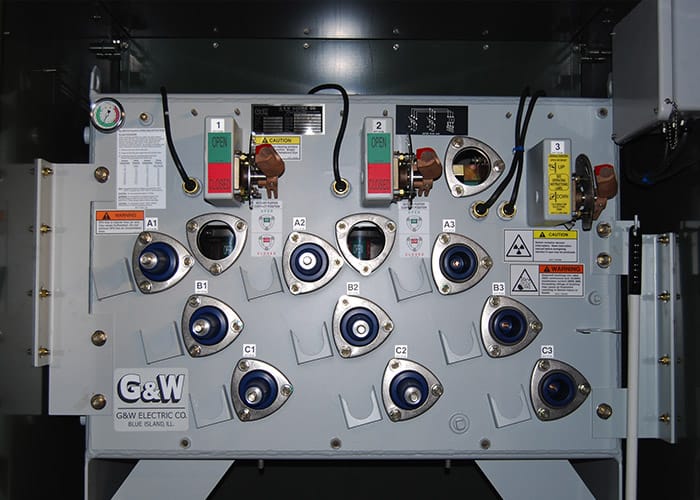

G&W Electric 的 RPFI 型垫装开关具有负载断路和三相故障分断功能。故障分断器在完全密封的前端装置中提供电子控制、可复位的过流保护。RPFI 是 G&W Electric 最紧凑、最经济的 SF6 绝缘开关。该开关设计用于电压高达 27kV、630A 负载分断和连续电流的三相系统，具有 12.5kA 的对称故障分断额定值。
开关的设计符合 IEEE C37.72 和 C37.74 的负载分断标准，以及 C37.60 的 12.5kA 对称故障分断能力标准。垫装外壳的设计和测试符合 IEEE C57.12.28 和 C57.12.29。
功能和优点
建筑 – 可提供紧凑型结构，可从正面接触开关操作和衬套。也有拱顶式结构，可从顶部接触到操作器和衬套。
故障中断 – 三相故障分断能力高达 12.5kA，可选择工业曲线，包括熔断器仿真曲线。
可见的断裂 – 装载断开装置配有可视断开装置，以便查看打开和关闭位置。
自动化 – 可通过便携式或永久安装的电机和控制器实现电机自动化。各种继电器（如 SEL、ABB 和 GE）均可使用 G&W Electric 编程和机柜结构。机柜可订购低压外壳，用于垫式安装、座式安装或 IP68 等级潜水式安装的拱顶安装开关柜。可提供保护编程或 LaZer 定制解决方案。
Configurations Chart for RPFI
| # of Ways | One-line Diagram (Horizontal) | Voltage Class (kV) | Catalog Number | ||
| Width* in. (mm) | Wt. w/SF6 lbs (kg) | ||||
| 4F |  | 15 | PFI20-376-12-4F | 38.2 (969) | 1200 (545) |
| 25 | PFI20-386-12-4F | ||||
| 5F |  | 15 | RPFI21-376-12-5F | 38.2 (969) | 1200 (545) |
| 25 | RPFI21-386-12-5F | ||||
| 6F |  | 15 | RPFI32-376-12-6F | 50.1 (1274) | 1500 (681) |
| 25 | RPFI32-386-12-6F | ||||
| 7F |  | 15 | RPFI31-376-12-7F | 50.1 (1274) | 1500 (681) |
| 25 | RPFI31-386-12-7F | ||||
| 9F |  | 15 | RPFI42-376-12-9F | 62.1 (1578) | 1800 (871) |
| 25 | RPFI42-386-12-9F | ||||
| 11F |  | 15 | RPFI43-376-12-11F | 62.1 (1578) | 1800 (871) |
| 25 | RPFI43-386-12-11F | ||||
| 12F |  center> | 15 | RPFI41-376-12-12F | 62.1 (1578) | 1800 (871) |
| 25 | RPFI41-386-12-12F | ||||
| 43F |  | 15 | RPFI43-376-12-43F | 74.1 (1883) | 2100 (953) |
| 25 | RPFI43-386-12-43F | 74.2 (1885) | 2250 (1023) | ||
| 51F |  | 15 | RPFI51-376-12-51F | 74.1 (1883) | 2300 (1044) |
| 25 | RPFI51-386-12-51F | 74.2 (1885) | 2250 (1023) | ||
| 52F |  | 15 | RPFI52-376-12-52F | 74.1 (1883) | 2100 (953) |
| 25 | RPFI52-386-12-52F | ||||
| 53F |  | 15 | RPFI53-376-12-53F | 74.1 (1883) | 2100 (953) |
| 25 | RPFI53-386-12-53F | ||||
| 54F |  | 15 | RPFI54-376-12-54F | 74.1 (1883) | 2000 (908) |
| 25 | RPFI54-386-12-54F | ||||
| 62F |  | 15 | RPFI62-376-12-62F | 86.1 (2188) | 2400 (1089) |
| 25 | RPFI62-386-12-62F | ||||
| 63F |  | 15 | RPFI63-376-12-63F | 86.1 (2188) | 2400 (1089) |
| 25 | RPFI63-386-12-63F | ||||
| 64F |  | 15 | RPFI64-376-12-64F | 86.1 (2188) | 2300 (1044) |
| 25 | RPFI64-386-12-64F | ||||
| 65F |  | 15 | RPFI65-376-12-65F | 86.1 (2188) | 2300 (1044) |
| 25 | RPFI65-386-12-65F | ||||
| 72F |  | 15 | RPFI72-376-12-72F | 98.1 (2493) | 2500 (1136) |
| 25 | RPFI72-386-12-72F | ||||
| Approximate Height: 59″ (1499mm), Approximate Depth = 49″ (1245mm) | |||||
