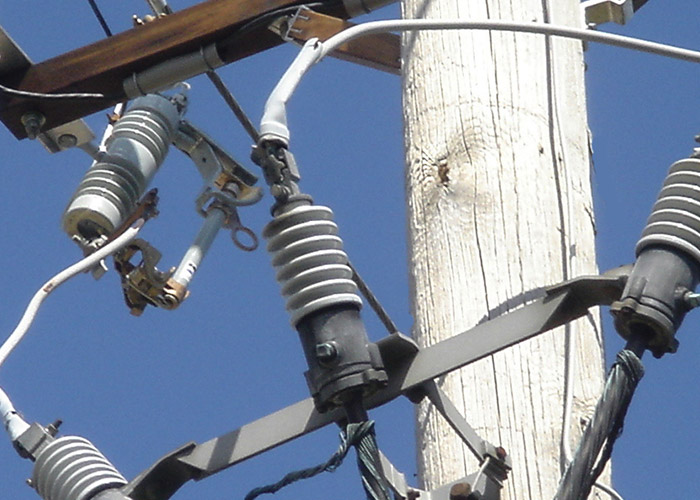

PAT 滑动式终端是一种工厂装配的电缆终端，内置应力消除装置，并在工厂预装了独有的绝缘介质，无需现场浇注热化合物。
PAT 滑动式终端
功能和优点
高强度无跟踪瓷绝缘子可提供最大程度的绝缘，不受高污染环境等风化因素的影响，同时具有出色的机械和电气特性
终端可接受各种直径的电缆，其设计可适应电缆形状的微小变化，防止停工
内置应力控制是一种工厂安装的内部应力消除装置，可有效消除电应力，而无需在电缆上制作胶带应力锥，从而缩短了安装时间
电缆准备完毕后，添加一个连接器，然后简单地将电缆插入终端，连接接地和天线，即可轻松安装 适配器套件允许使用各种电缆设计，无需额外的安装培训
Ratings Chart for Slip-On Terminations
| Voltage | Copper Conductor Max Cable Size | Aluminum Conductor Max Cable Size | Semi-con OD Range | Catalog Number |
|---|---|---|---|---|
| 15kV | 250MCM | 250MCM | 5/8″-1″ | PAT1701 |
| 15kV | 750MCM | 500MCM | 1″-1-5/8″ | PAT1772 |
| 15kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PAT1773 |
| 25kV | 250MCM | 250MCM | 5/8″-1″ | PAT1801 |
| 25kV | 250MCM | 250MCM | 3/4″-1-1/4″ | PAT1802 |
| 25kV | 750MCM | 500MCM | 1″-1-5/8″ | PAT1872 |
| 25kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PAT1873 |
| 34.5kV | 750MCM | 500MCM | 1″-1-5/8″ | PAT1972 |
| 34.5kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PAT1973 |
| 46kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PAT1073 |
| 15kV | 250MCM | 250MCM | 5/8″-1″ | PATR1701 |
| 15kV | 750MCM | 500MCM | 1″-1-5/8″ | PATR1772 |
| 15kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PATR1773 |
| 25kV | 250MCM | 250MCM | 5/8″-1″ | PATR1801 |
| 25kV | 250MCM | 250MCM | 3/4″-1-1/4″ | PATR1802 |
| 25kV | 750MCM | 500MCM | 1″-1-5/8″ | PATR1872 |
| 25kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PATR1873 |
| 34.5kV | 750MCM | 500MCM | 1″-1-5/8″ | PATR1972 |
| 34.5kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PATR1973 |
| 46kV | 1500MCM | 1250MCM | 1-5/16″-2-3/16″ | PATR1073 |
Accessories Chart for PAT Style Slip-On Terminations
| Vertical 4 Hole Flat Pad | Style 8 Offset 2 Hole Flat Pad | 2AWG-500MCM Clamp Style | 550MCM – 1000MCM Clamp Style | 2AWG-500MCM Style 4 Offset | 550MCM-1000MCM Style 4 Offset |
|---|---|---|---|---|---|
| A5076-192 | A5076-100A | A5076-190 | A5076-191 | A5076-204 | A5076-205 |
| A5076-192A | N/A | A5076-190A | A5076-191A | A5076-204A | A5076-205A |
PAT 滑动式终端配件表 – 套件
| Catalog Number | URD Cable | For XLPE or EPR shielded and jacketed cables where lead wipe is not needed. | For XLPE or EPR lead sheathed cables where lead wipe is required | For PILC cables |
|---|---|---|---|---|
| PAT1701 | No Kit Required | K1 Adapter Kit Required | W1 Adapter Kit Required | PW11 Adapter Kit Required |
| PAT1772 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW21 Adapter Kit Required |
| PAT1773 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW31 Adapter Kit Required |
| PAT1801 | No Kit Required | K1 Adapter Kit Required | W1 Adapter Kit Required | PW11 Adapter Kit Required |
| PAT1802 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW21 Adapter Kit Required |
| PAT1872 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW22 Adapter Kit Required |
| PAT1873 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW32 Adapter Kit Required |
| PAT1972 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW22 Adapter Kit Required |
| PAT1973 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW33 Adapter Kit Required |
| PAT1073 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW33 Adapter Kit Required |
| PATR1701 | No Kit Required | K1 Adapter Kit Required | W1 Adapter Kit Required | PW11 Adapter Kit Required |
| PATR1772 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW21 Adapter Kit Required |
| PATR1773 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW31 Adapter Kit Required |
| PATR1801 | No Kit Required | K1 Adapter Kit Required | W1 Adapter Kit Required | PW11 Adapter Kit Required |
| PATR1802 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW21 Adapter Kit Required |
| PATR1872 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW22 Adapter Kit Required |
| PATR1873 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW32 Adapter Kit Required |
| PATR1972 | No Kit Required | K2 Adapter Kit Required | W2 Adapter Kit Required | PW22 Adapter Kit Required |
| PATR1973 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW33 Adapter Kit Required |
| PATR1073 | No Kit Required | K3 Adapter Kit Required | W3 Adapter Kit Required | PW33 Adapter Kit Required |
