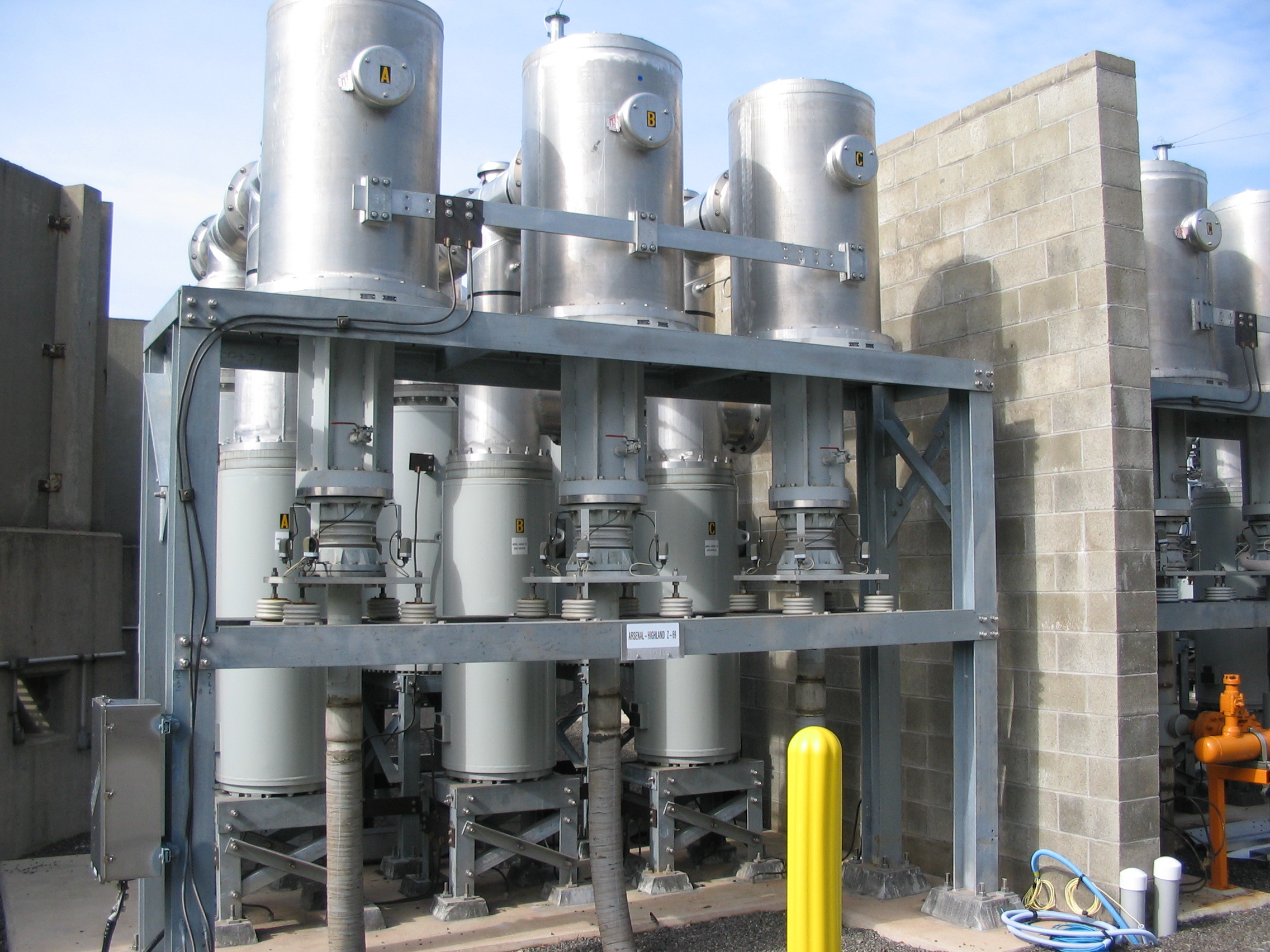

ATA/ATL-SF GIS Termination

ATA/ATL-SF GIS 终端

对于独立式和管道式电缆系统，GIS 终端的设计符合 IEEE 1300 标准，适用于额定电压为 138 至 345 千伏的气体绝缘变电站。终端设计可用于单导体、低压独立式或高压管式充液电缆。

Email Your Specs

功能和优点

  • ATA-SF 端接的设计符合 IEEE 1300 标准，为气体绝缘环境带来了高强度瓷绝缘的安全性

  • ATL 系列可处理 15psi 至 100psi 的电缆压力

  • 通过在工厂打孔的纸卷进行应力控制，确保每次安装都能获得正确的坡度

  • 终端可为牛皮纸或 LPP 电缆绝缘类型而设计

  • ATA 系列可承受 200psi 至 400psi 的电缆压力

High Pressure Fluid Filled Cables – ATA/ATL-SF

Operating VoltageBIL Max Conductor SizeCatalog Number
138kV650kV3500kcmilATA140N-SF
230kV1050kV3500kcmilATA160N-SF
345kV1300kV3500kcmilATA180N-SF
Catalog number modifiers based on operating pressure rating
200psiNo modifier, example ATA119N
300psiCatalog Number-HS, example ATA119N-HS
400 psiCatalog Number-EHS, example ATA119N-EHS

Low/Med Press Fluid Filled Cables

Operating VoltageBILMax Conductor SizeCatalog NumberStandard
138kV650kV3000kcmilATL140N-SFIEEE1300
230kV1050kV3000kcmilATL160N-SFIEEE1300
115kV550kV4000kcmilATL130A-SFIEC60859
138kV650kV4000kcmilATL140A-SFIEC60859
161kV750kV3200kcmilATL150A-SFIEC60859
Catalog number modifiers based on operating pressure rating
15psiNo modifier, example ATL119N-SF
40psiCatalog Number-HS, example ATL119N-SF-HS
100 psiCatalog Number-EHS, example ATL119N-SF-EHS
